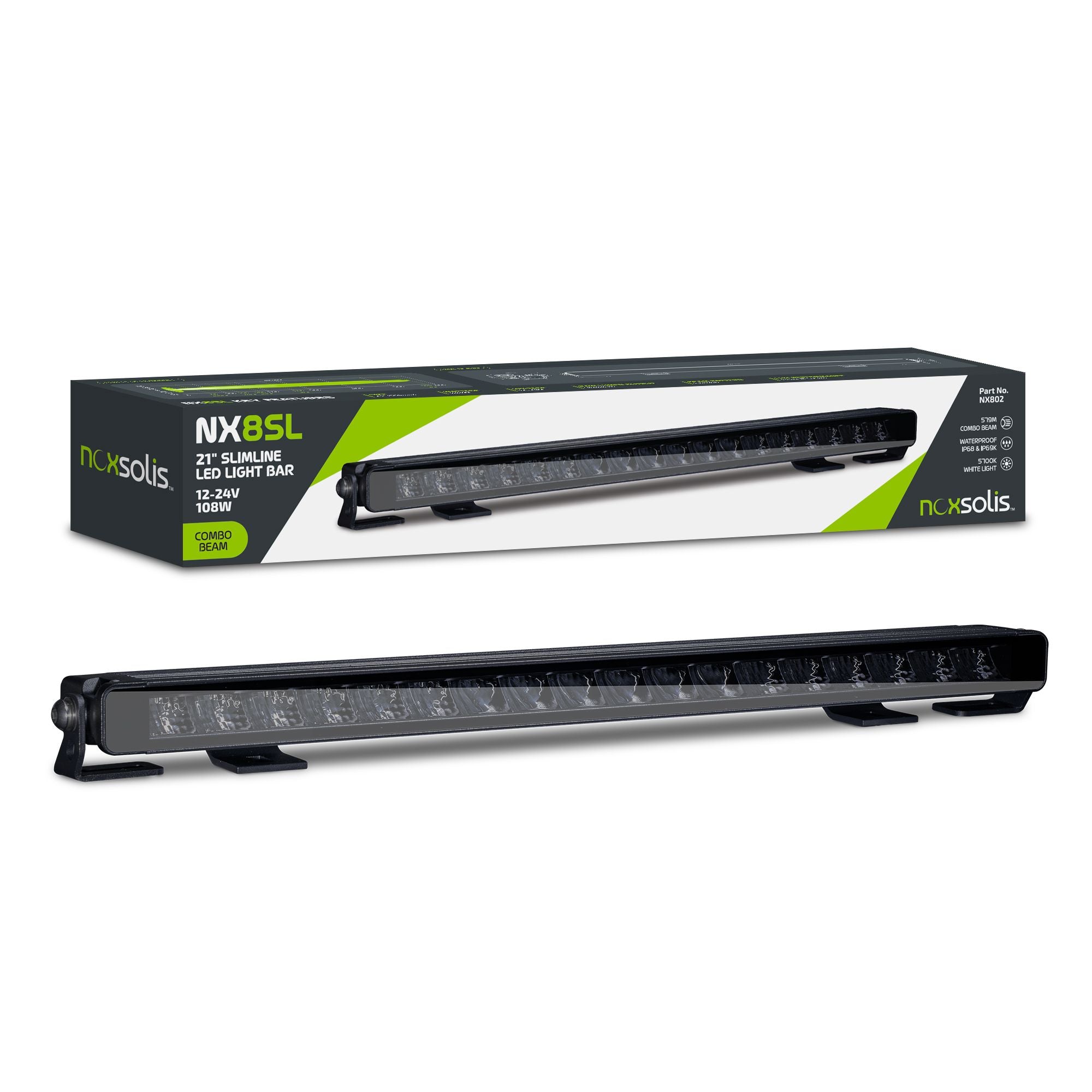

NX802 – 21″ Slimline LED Light Bar | 9600 Lumens | Combo Beam

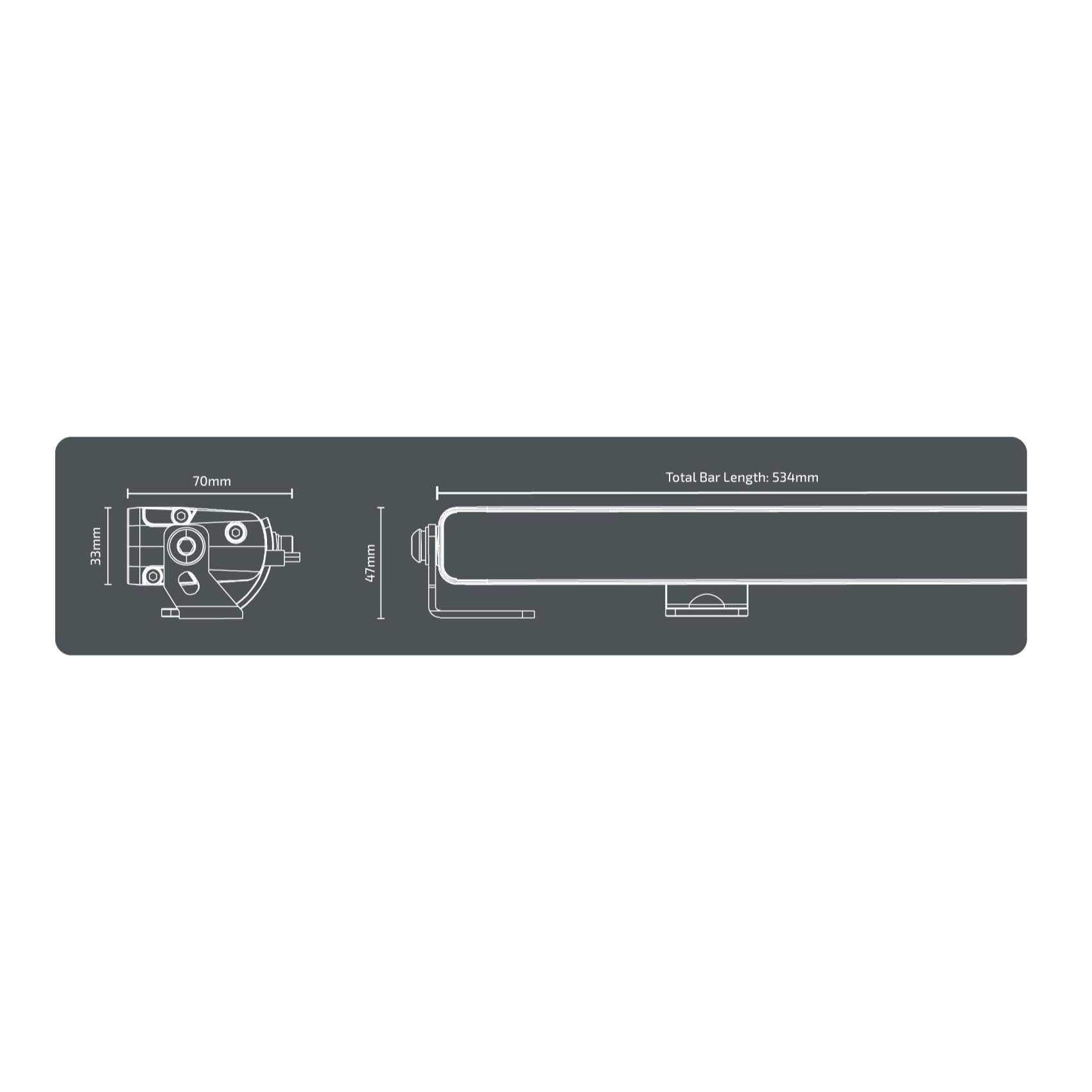

The new Slimline range of LED Light bars are perfect for applications where mounting space is limited. This 21″ light bar packs some serious punch given its 33mm slim profile, and uses a high quality reflector system to create the powerful combo beam pattern.

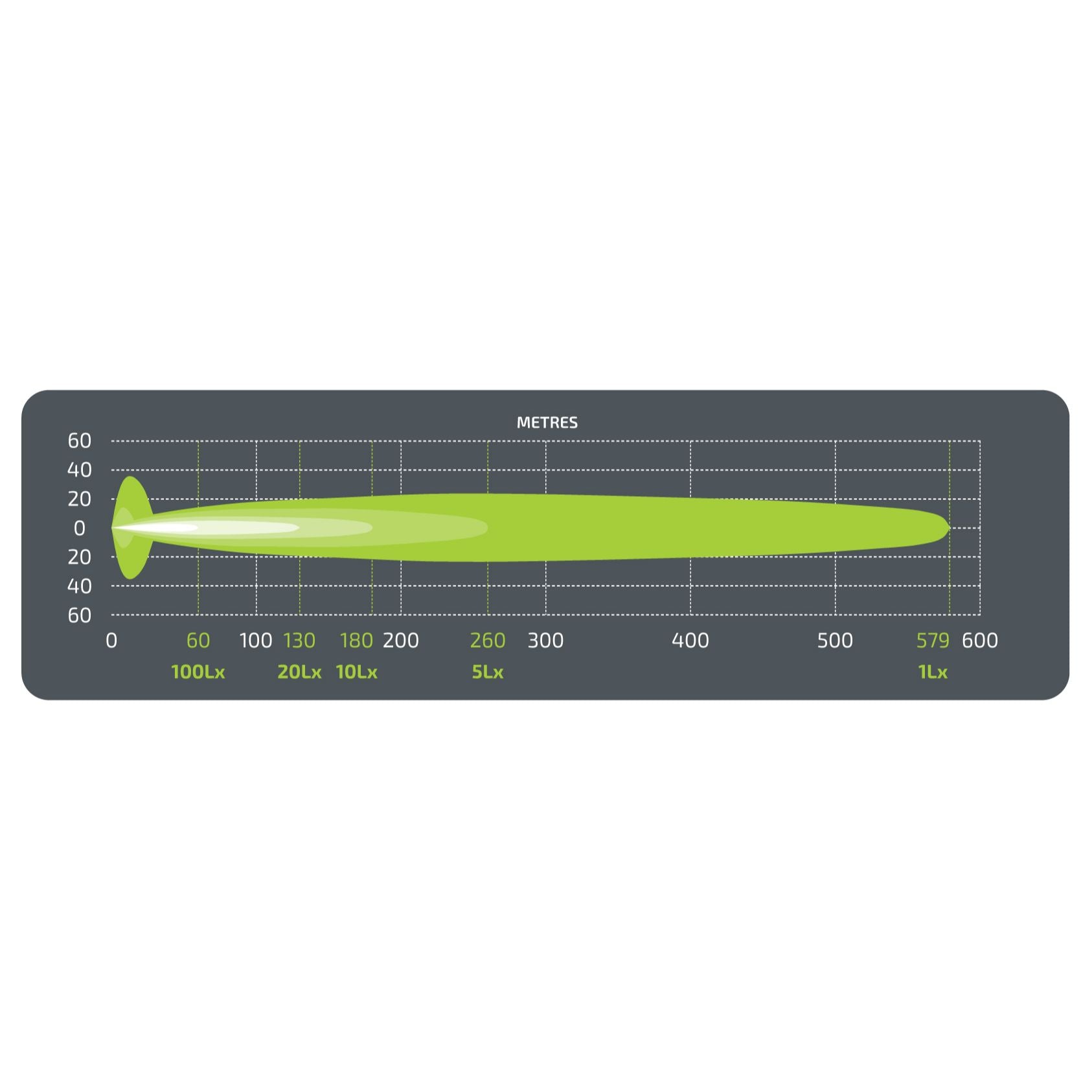

The NX802 creates a 579m long beam at 1 lux.

NX802 Specifications

• Raw Lumens: 9,600
• Wattage: 108W
• Maximum Current Draw: 8.1A @ 13.8V, 4.2A @ 24V
• Weight: 1.12kg
• Beam: 1 Lux & 579m
• Mounting: Side or rear mount brackets
• Connection: 2 Pin DT
• Colour: White light 5700K
• Voltage: 12-24V
• Wiring: 500mm to 2 Pin DT or DT-P connection. (150mm fly lead included)
• Approved to R10 EMI (radio interference)
• Waterproof IP68 & IP69K
