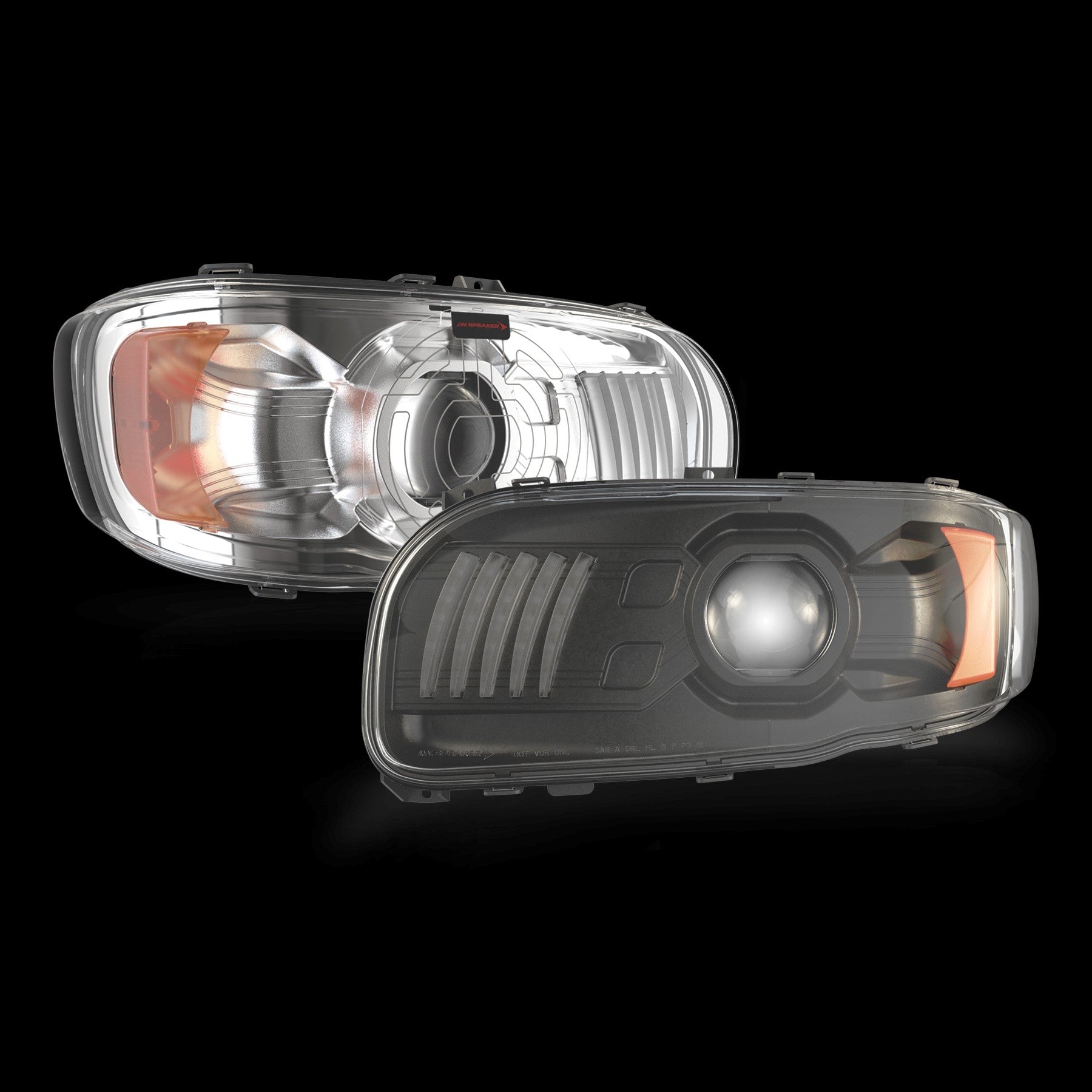

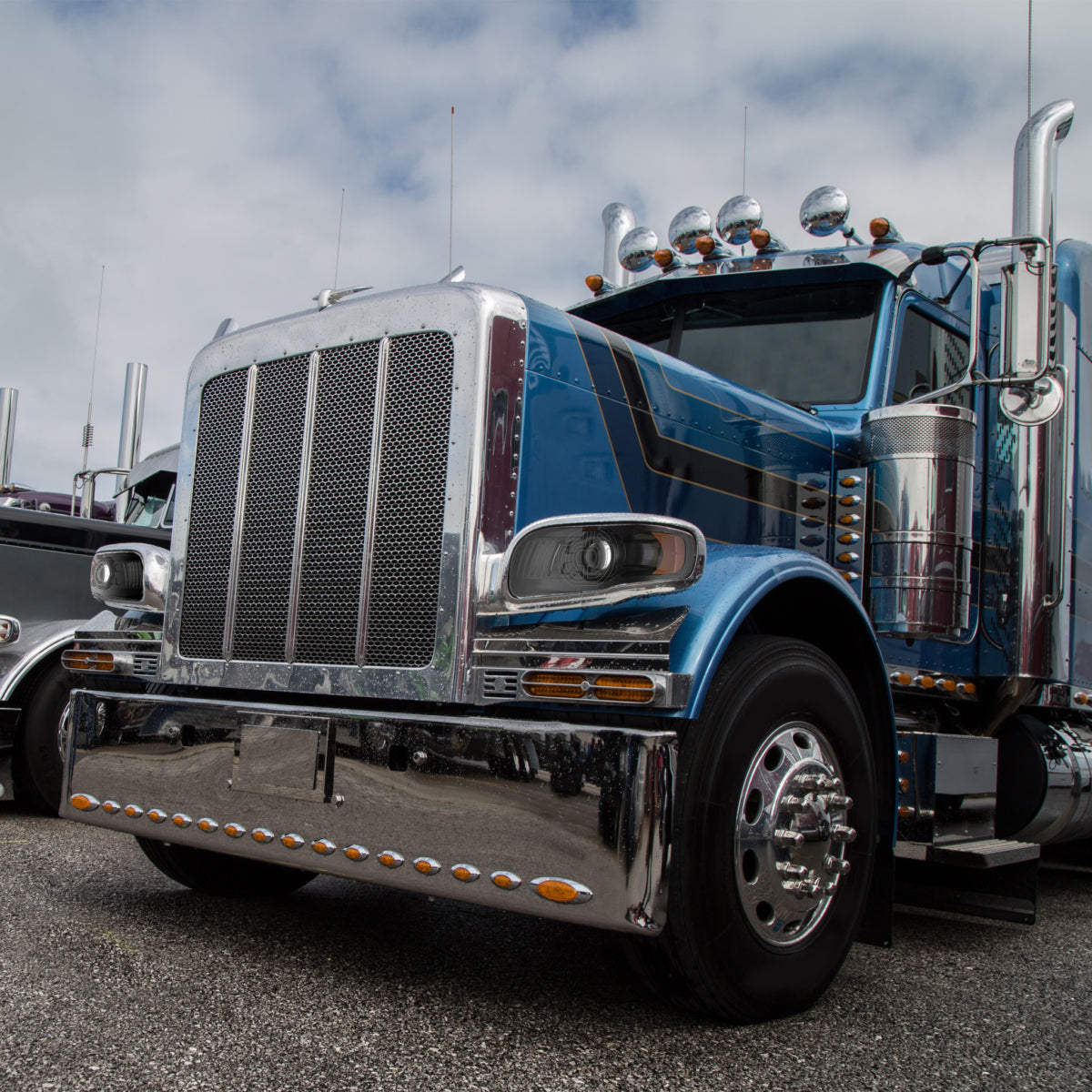

Black Heated Model 9600 Pod Lights for Peterbilt Trucks!

NEW from JW Speaker!  These are sold individually.   Please be sure to order one Left (Drivers Side) and one Right (Passenger Side) for a complete set!! High Performance Lighting is an authorized J.W. Speaker dealer.  As such we are committed to providing our customers with expert product knowledge of JW Speaker products in additional to exceptional service and after sales support, including warranty coverage.

Compatibility:

• PETERBILT: 388, 389, 567 & 367
• REPLACES PART NUMBERS: PE-001-L, PE-001-R
• CLASSIFICATION: SAE/DOT compliant – Road legal in Canada and USA
• *If your Peterbilt heavy-duty truck already supports DRL function, the model 9600 will support the function. If it doesn’t support DRL, the light will not add DRL to your vehicle.

Tech Specs:

• Raw Lumen Output: 2895 High Beam, 1200 Low Beam
• Effective Lumen Output: 1020 High Beam, 614 Low Beam
• Candela Output: 50400 High Beam, 26690 Low Beam
• Nominal LED Color Temperature: 5000 K
• Input Voltage: 12 V
• Operating Voltage: 9-18 V
• Transient Spike Protection: 330V Peak @ 1 HZ-100 Pul
• Black Wire: Ground
• Red Wire: (+) Rear Repeater
• White Wire: High Beam
• Yellow Wire: Low Beam
• Green Wire: Turn Signal
• Brown Wire: Side Marker
• Current Draw: 2.1A @ 12V,4.2A @ 12V,2.15A @ 12V,0.34A @ 12V
